Description

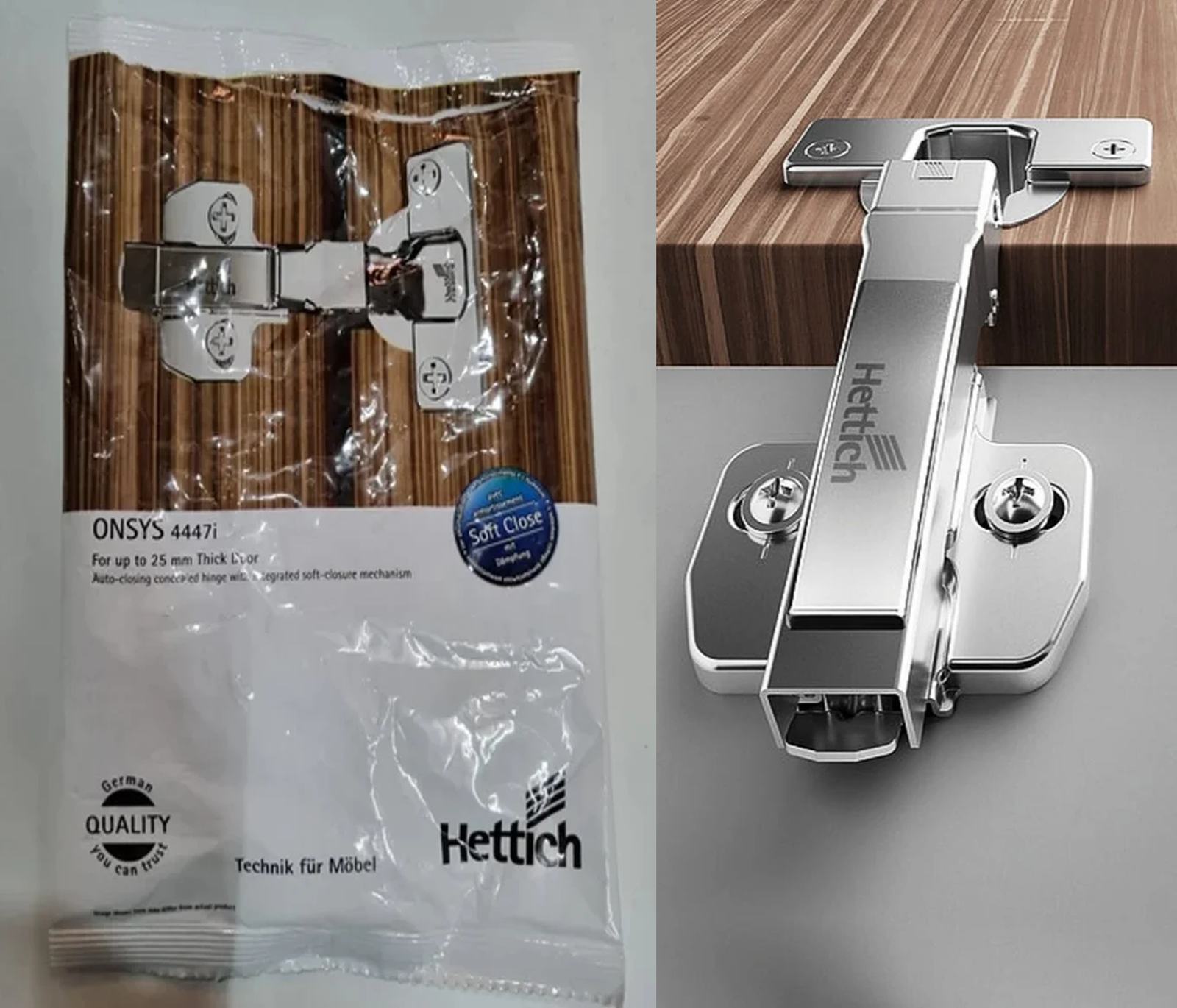

✅ Hettich Onsys Clip-On
-
“Onsys” is a hinge line from Hettich — designed for furniture such as kitchen cabinets, wardrobes, storage units and other shutter-door furniture.
-
The “Clip-On” part means tool-free or quick installation: the hinge arm clips onto a mounting plate, making assembly or replacement faster and simpler than conventional screw-mount hinges.
-
It’s a concealed hinge — hidden inside the cabinet door, rather than being visible from outside — giving a clean, modern look.
🔧 Key Technical / Functional Details
Here are the main specs and features for a typical Onsys Clip-On hinge :
| Feature | Specification / Description |
|---|---|
| Door thickness supported | 14 mm – 25 mm |
| Cup diameter | 35 mm standard European hinge cup size |
| Door opening angle | ≈ 105° — gives good access to cabinet interiors |
| Mounting method | Clip-On onto a mounting plate (quick assembly) |
| Closing mechanism | Integrated “Silent System” / soft-closing: doors close smoothly and quietly without slamming |
| Adjustments | Typically allows overlay/depth/height adjustment via mounting plate (overlay adjustment ±2 mm, depth adjustment +2.5 mm/–1.5 mm) |
| Overlay types / door types supported | Full overlay, half overlay, inset (via different crank/mount-plate/hinge variants) |
| Durability / Guarantee | Tested for around 40,000 opening/closing cycles. Quality certified under European standard (e.g. EN 15570 Level 2) |
📦 What It’s Best For
The Onsys Clip-On hinge is ideal for:
-
Kitchen cabinets, wardrobes, cupboards, storage units or any furniture with shutter-style doors.
-
Situations where you want a clean, minimalist exterior (hinge hidden inside).
-
Quick or modular furniture assembly — since Clip-On installation is fast and relatively easy.
-
Doors in typical thickness range (14–25 mm) — wooden or laminated furniture doors.
-
Users who value soft-close, silent, smooth door closing — especially in homes with kitchens, living rooms, or shared spaces.
⚠️ What to Keep in Mind / Limitations
-
The opening angle is ~105°, which is good for most cabinetry — but not extremely wide. For very large doors or very wide opening requirements, check if this angle suffices.
-
It’s designed for typical cabinet-door thickness (14–25 mm). Doors outside this thickness range might need different hinges.
-
Proper installation (mounting plate and correct drilling pattern) is necessary to ensure the hinge works smoothly; incorrect installation may cause misalignment.
-
Over time—especially with heavy doors or frequent use—hinges may need adjustment to maintain alignment (though Hettich’s adjustment range helps manage that).
